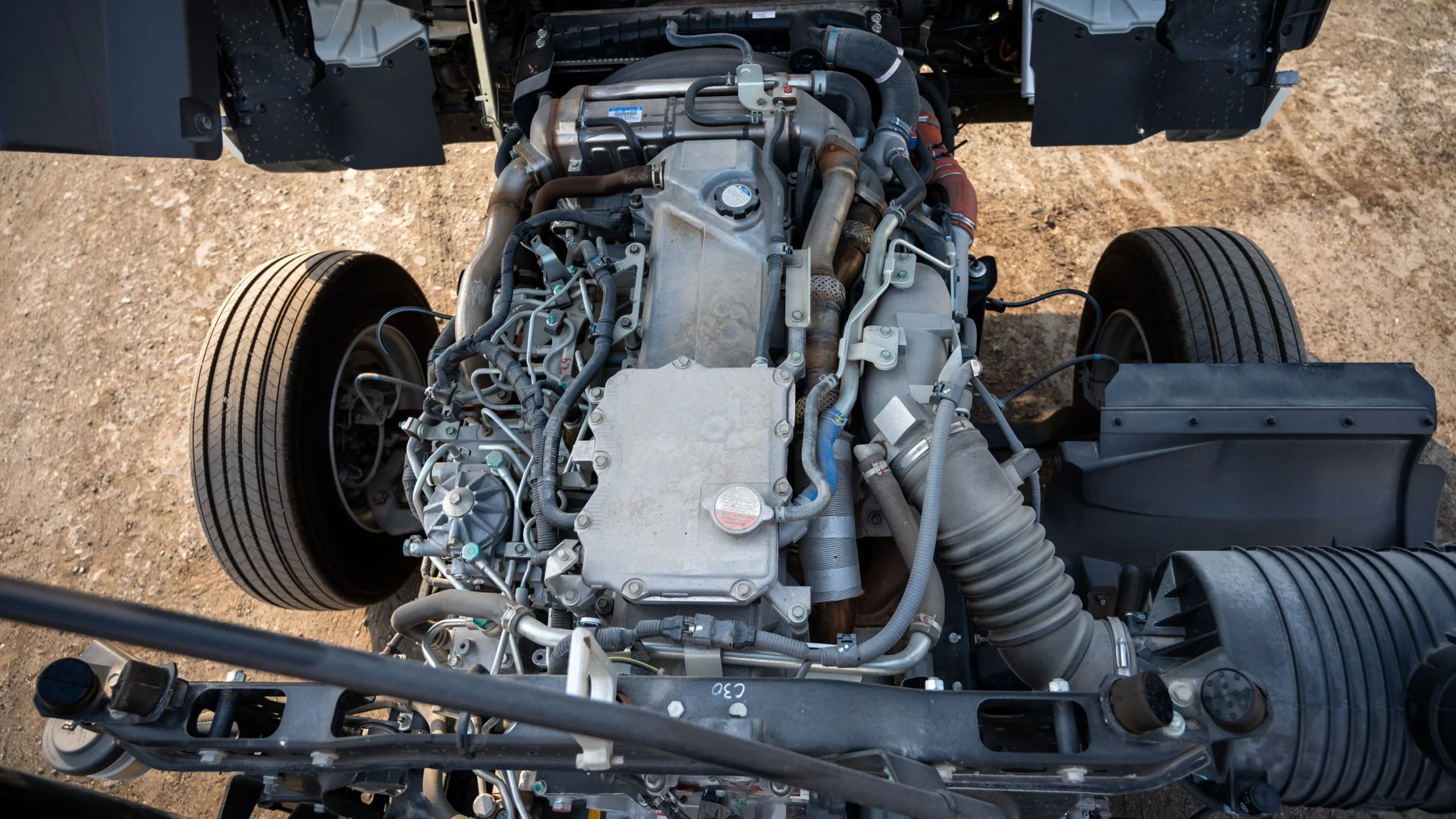

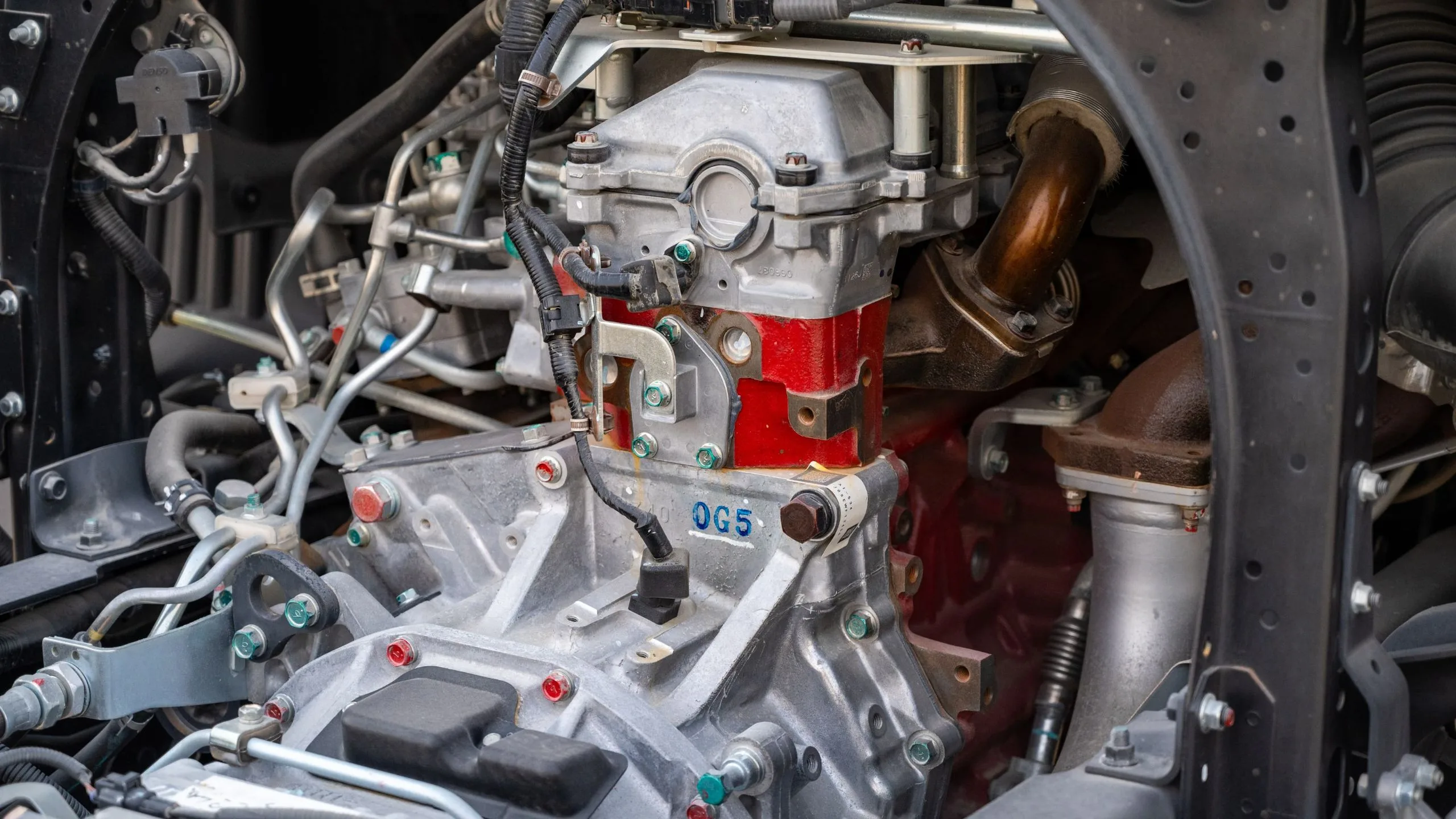

Engine & Performance

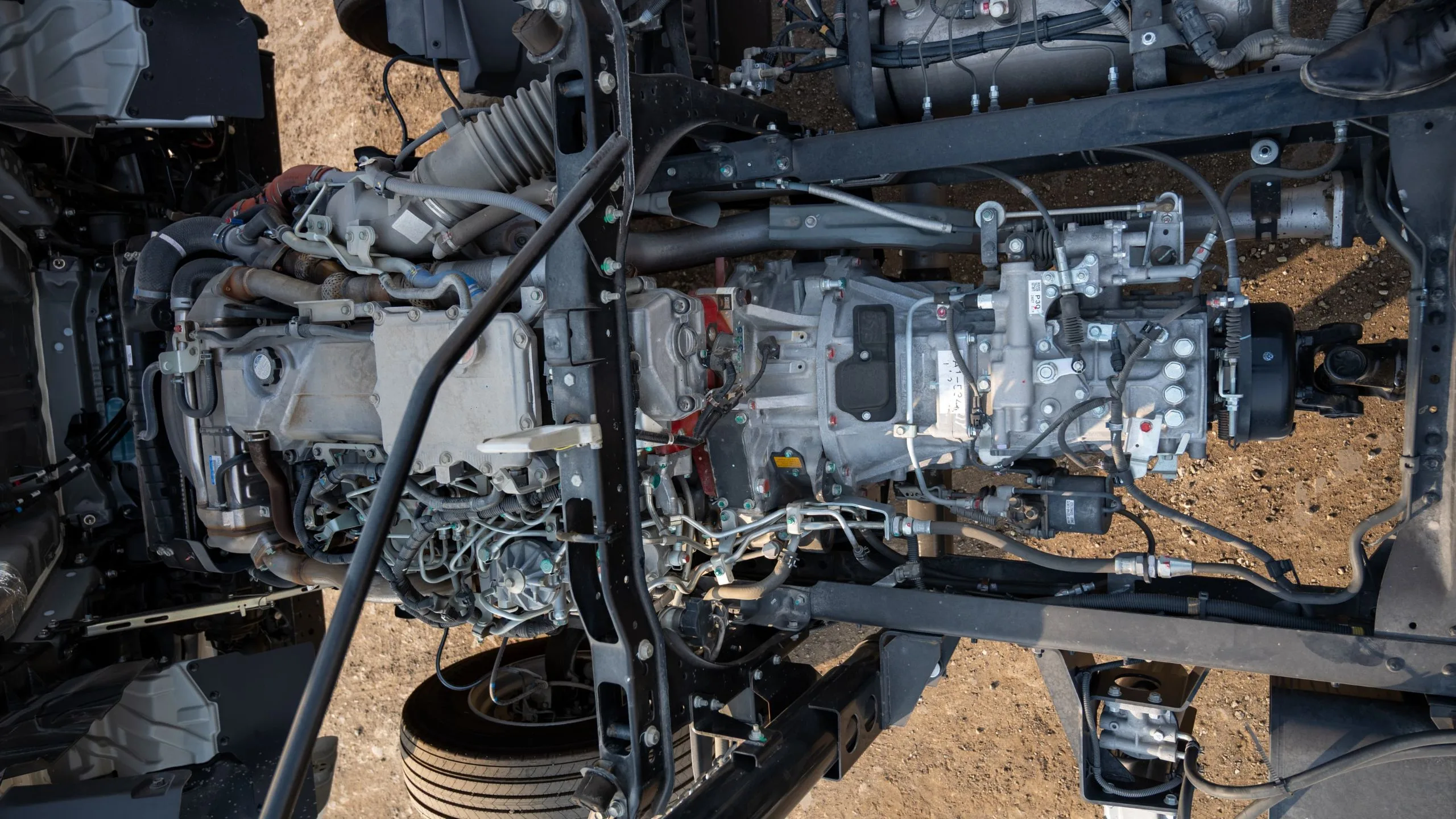

• Engine Type: J08E-WF, Turbocharged Diesel

• Displacement: 7,684 cc

• Max Power: 245 PS @ 2,500 rpm

• Max Torque: 726 Nm @ 1,500 rpm

• Emission Standard: Euro 4

• Fuel Type: Diesel

• Fuel Tank Capacity: 200 Liters

• Top Speed: 109 km/h

• Gradeability: 53.2%

Transmission & Drivetrain

• Gearbox: Manual, 6-speed

• Drive Type: 4x2

• Rear Axle Gear Ratio: 4.875

• Exhaust Brake: Yes

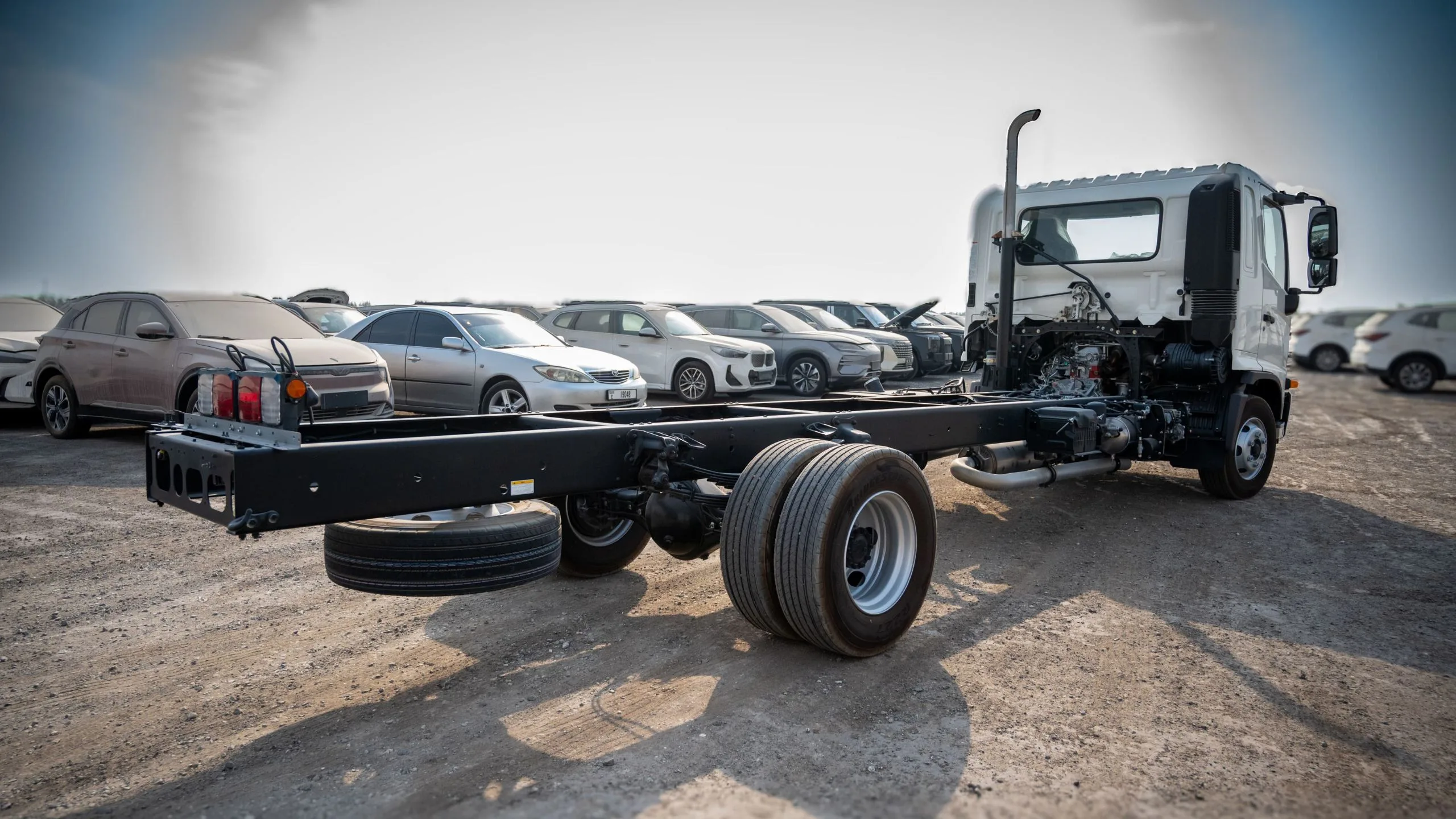

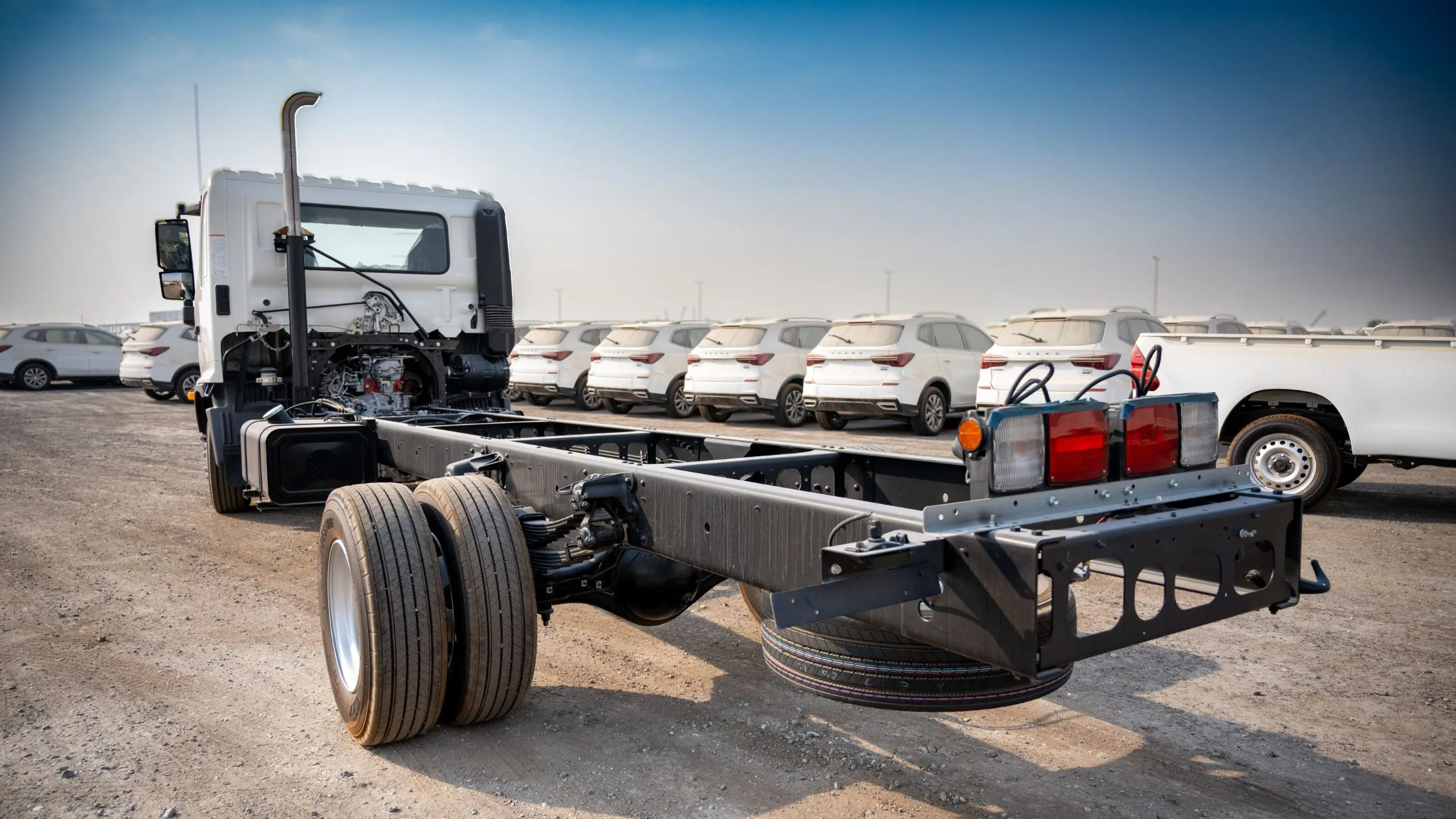

Chassis & Suspension

• Front Axle: 3,400 kg

• Rear Axle: 7,000 kg

• Gross Vehicle Mass (GVM): 10,400 kg

• Kerb Weight: 3,600 kg

• Payload on Chassis: 7,000 kg

• Gross Combined Mass (GCM): 17,500 kg

• Frame Section: 231.6 x 73 x 6.8 mm

Brakes & Safety

• Service Brakes: Air over hydraulic

• Front Brake: Drum (320 x 110 mm)

• Rear Brake: Drum (325 x 145 mm)

• ABS: Yes

• Parking Brake: Mechanical internal

• Exhaust Brake: Yes

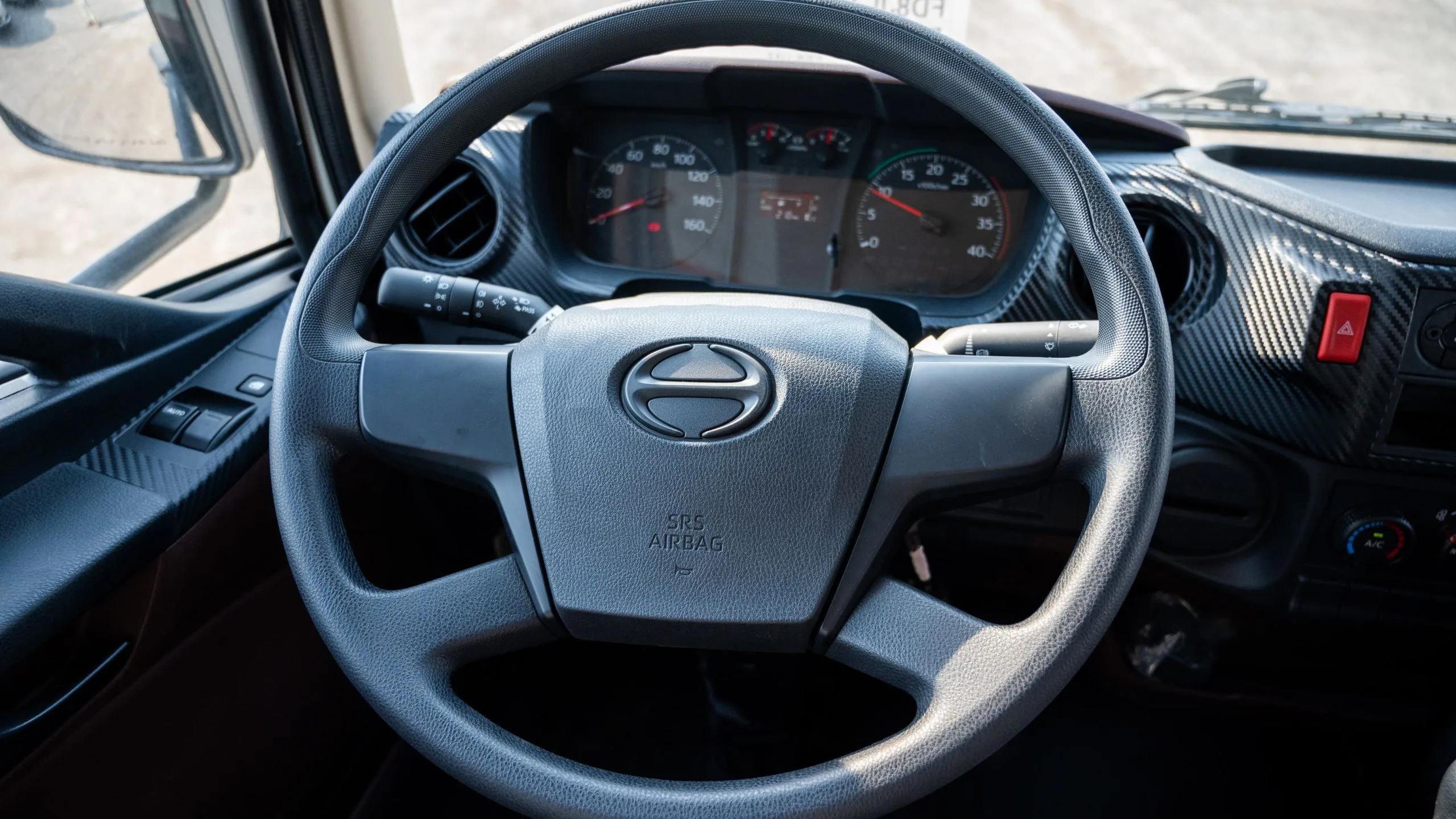

• SRS Airbags: Driver + Passenger

Dimensions

• Overall Length: 8,095 mm

• Overall Width: 2,165 mm

• Overall Height: 2,190 mm

• Wheelbase: 4,850 mm

• Ground Clearance: 220 mm

• Turning Radius (Curb to Curb): 7.6 m

• Frame Width: 850 mm

• Rear Chassis Height: 820 mm

• Rear Overhang: 2,060 mm

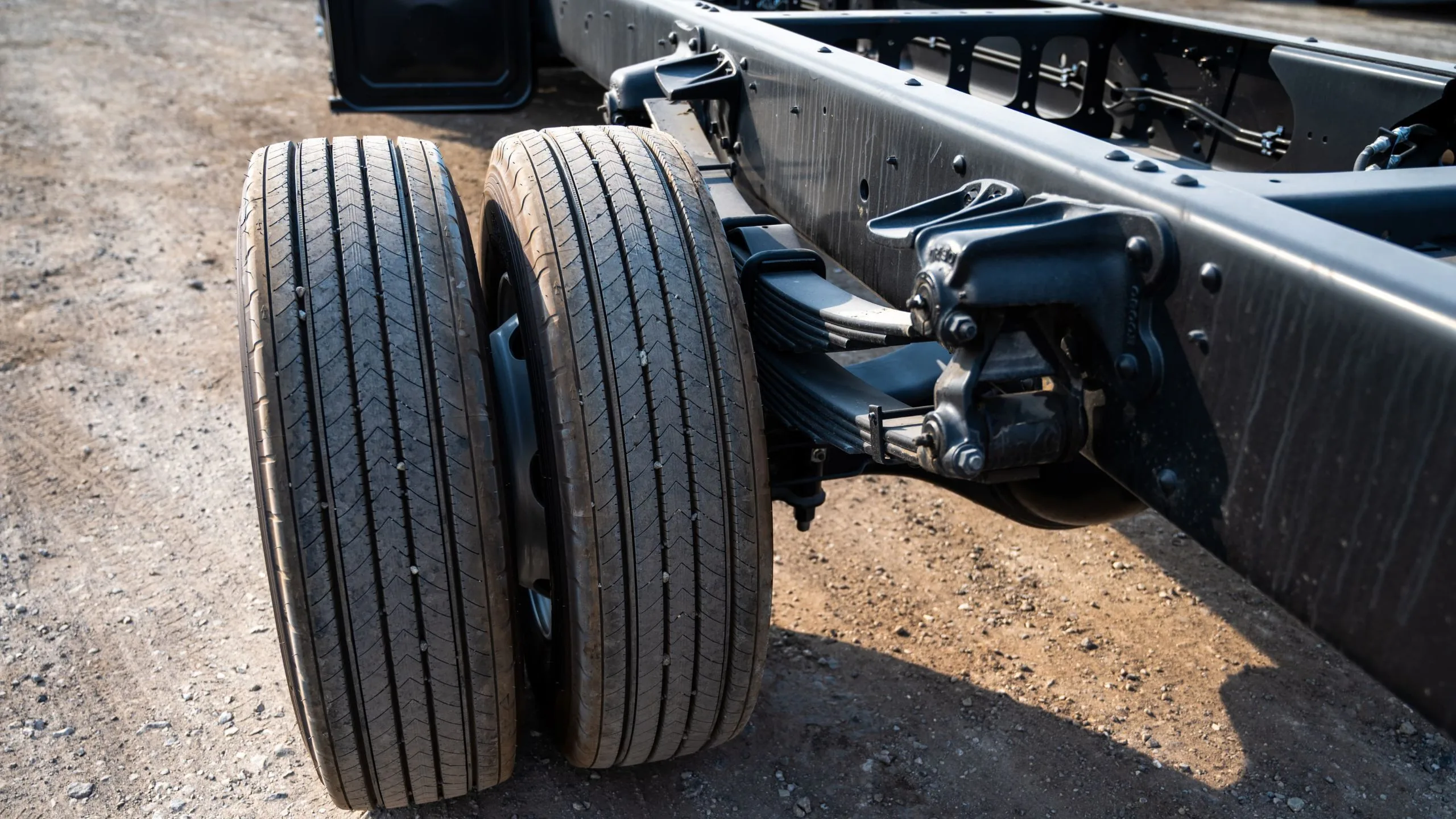

Tires & Wheels

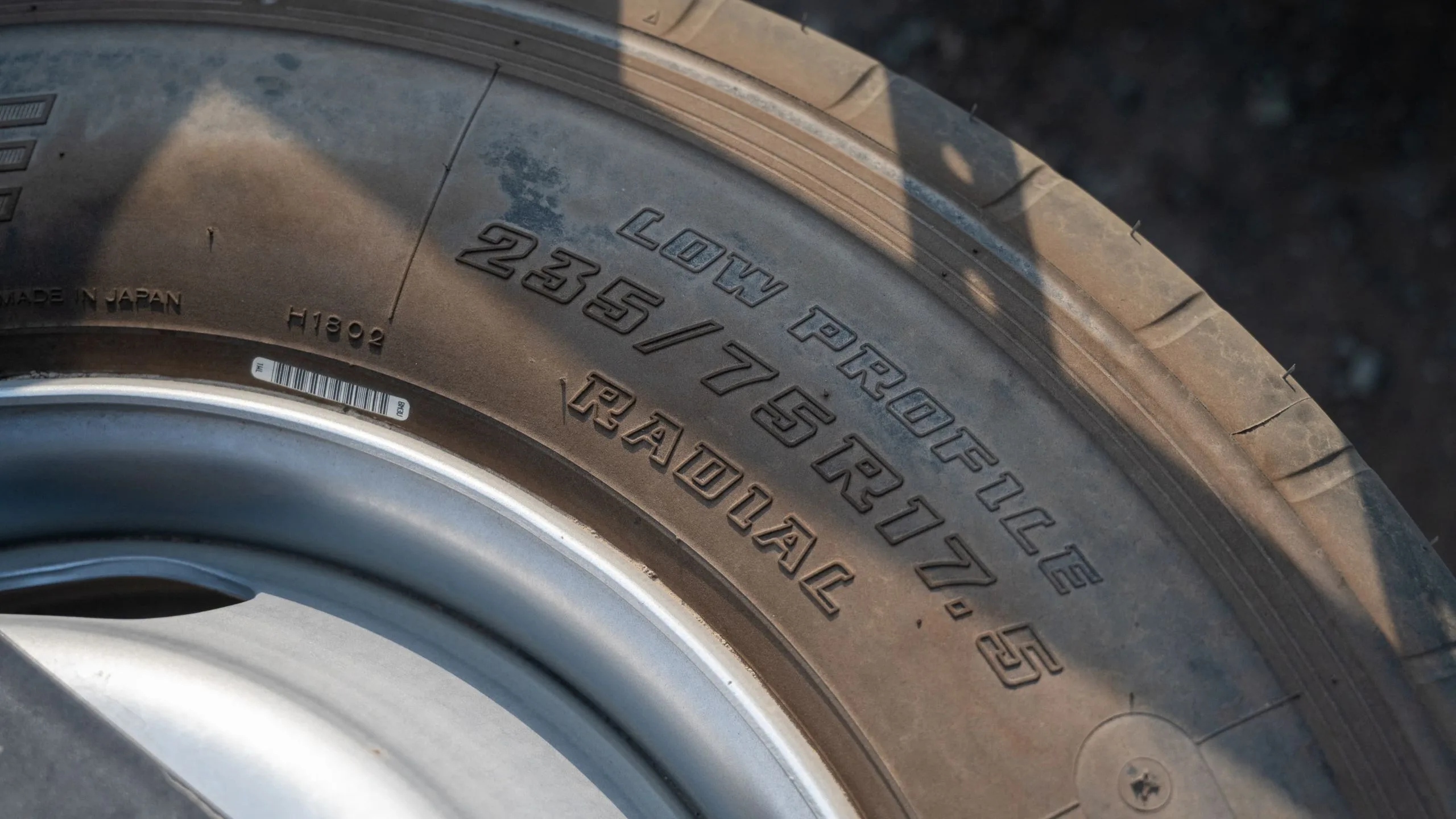

• Tire Size: 235/75 R17.5 (Tubeless)

• Number of Wheels: 6 + 1 Spare

• Rim Size: 17.5"

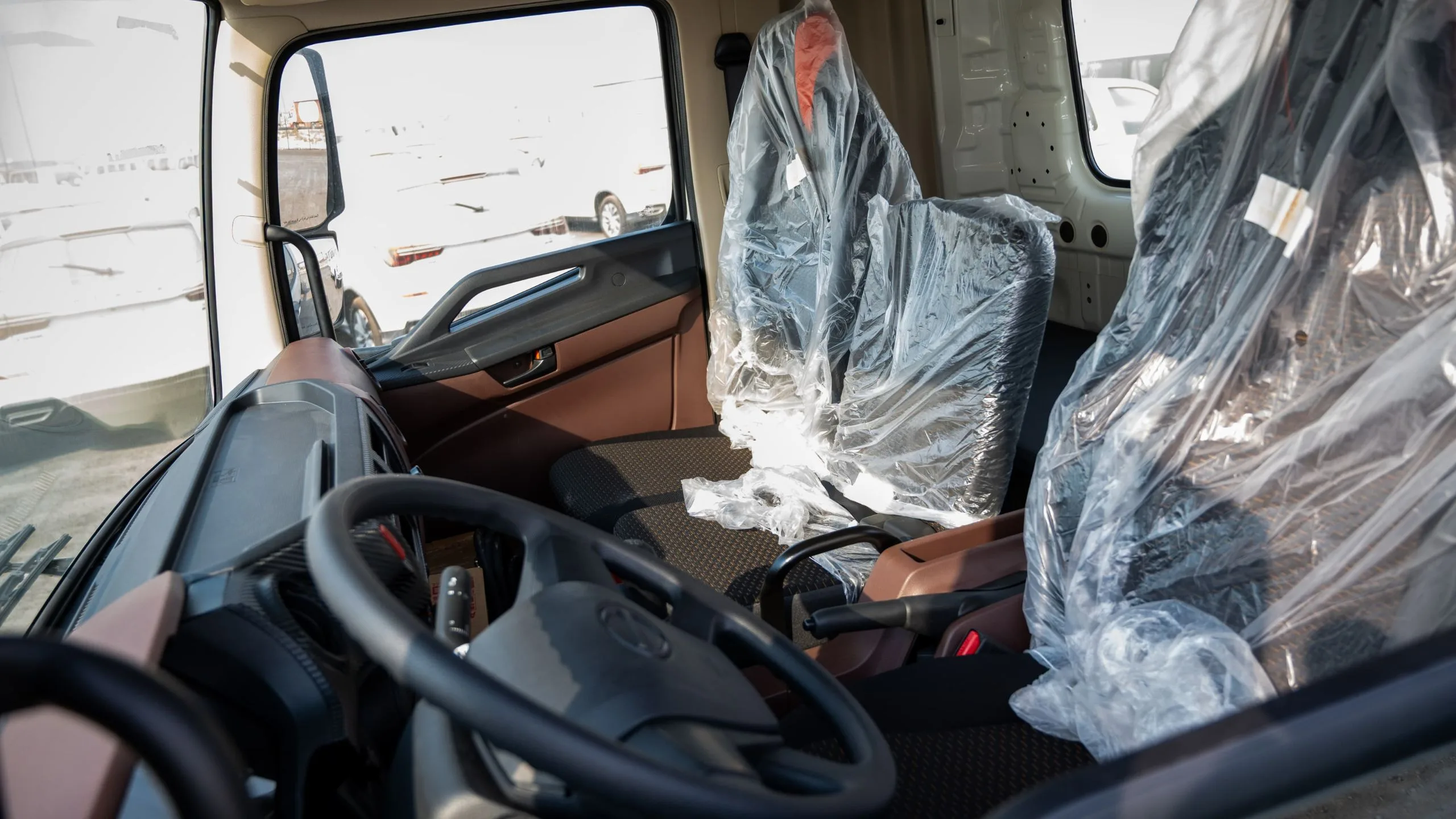

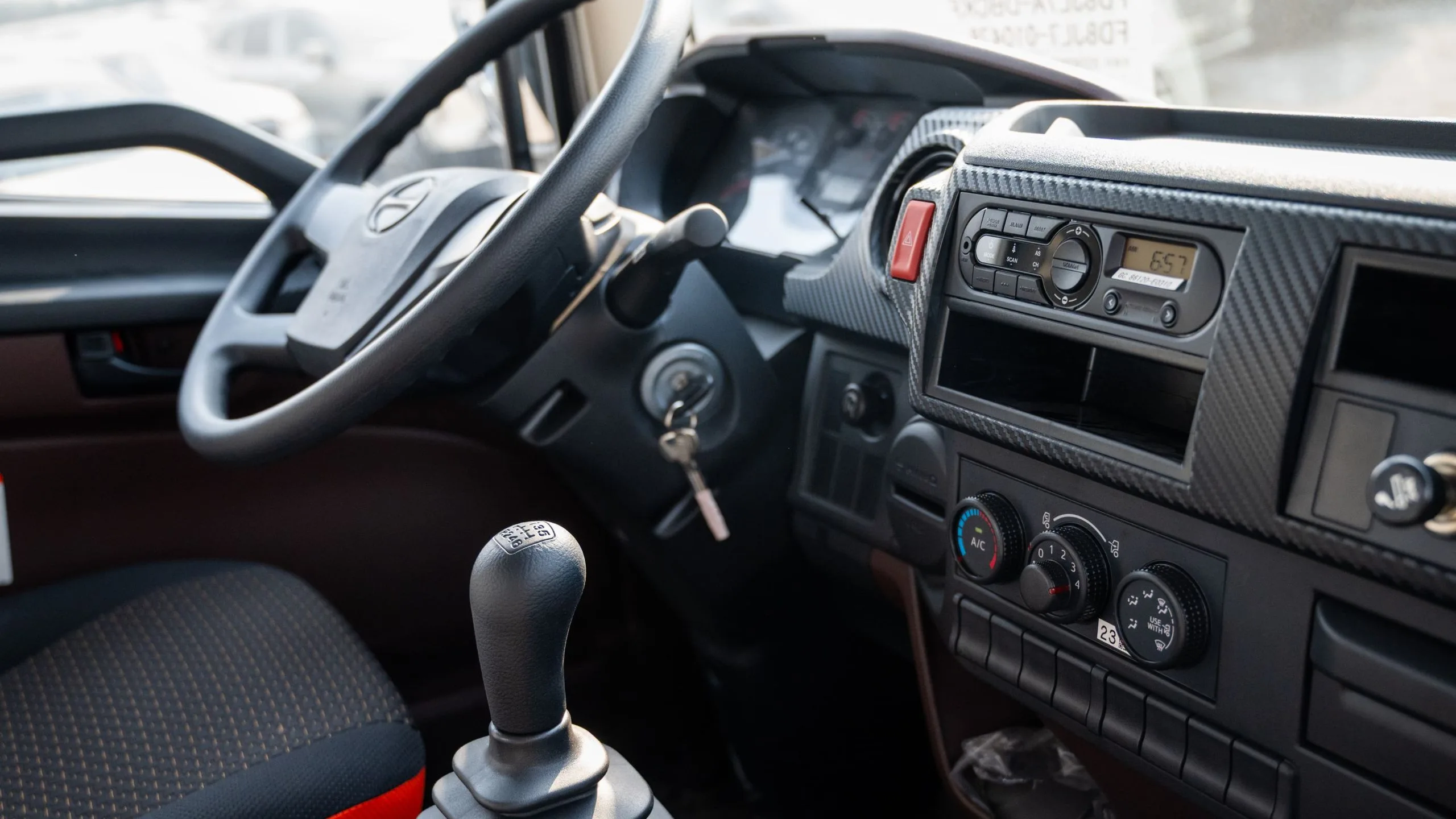

Cab & Features

• Cabin Type: Standard

• Seating Capacity: 1 + 2

• Origin: Japan

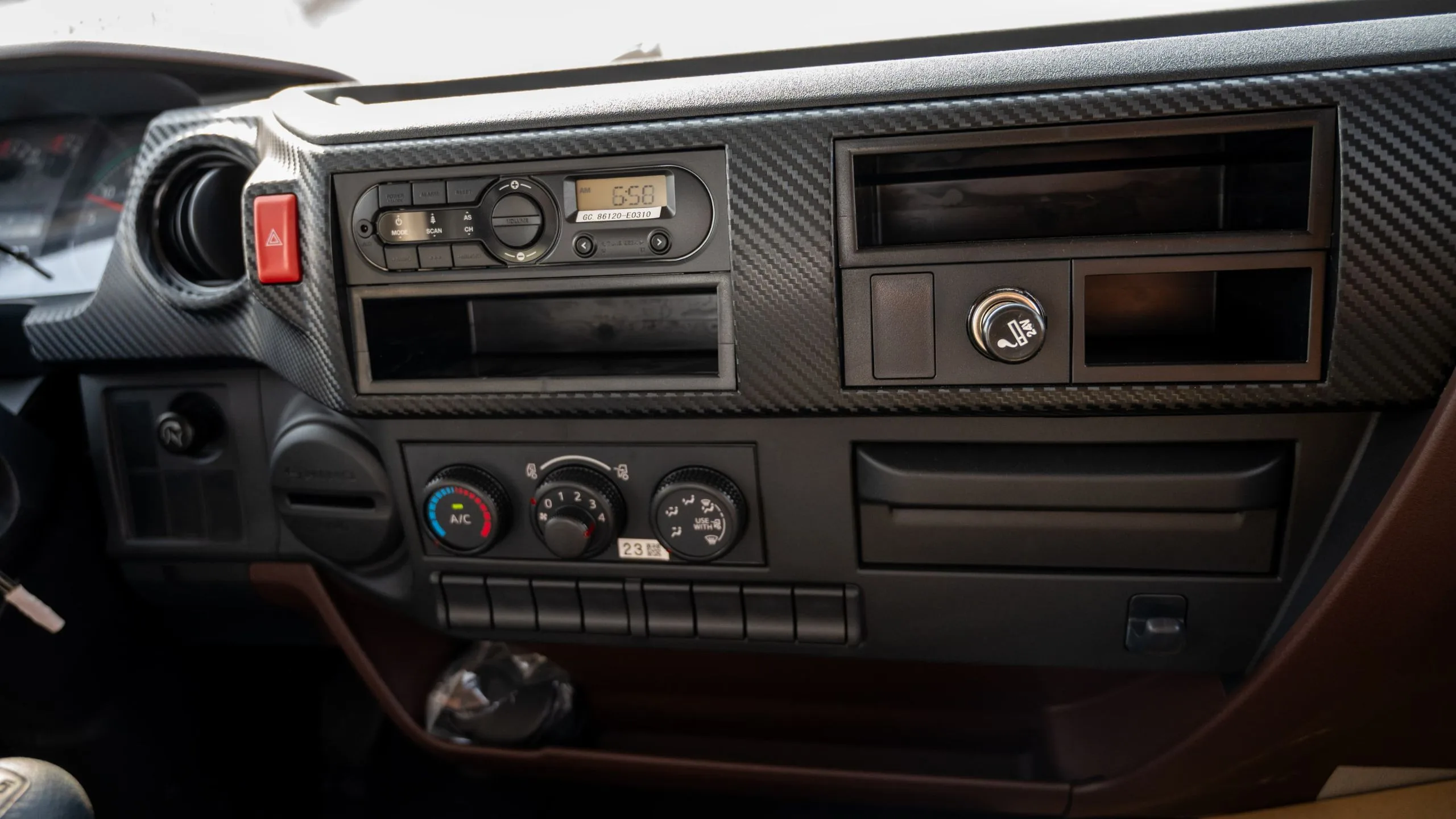

• Power Windows & Central Lock: Yes

• Audio with Bluetooth: Yes

• Factory Fitted A/C: Yes

• Fog Lamps: Yes
